WHAT YOU WILL NEED TO RUN THE RS PRO STRIP
POWER SUPPLY
- The RS Pro Strip requires a 3 phase 400v 32amp power supply with a neutral and earth.
- The Pro Strip max power output is 20kwh at 28amps.
- The RS Pro Strip will be supplied with no plug or electric cable if supplied outside of the UK mainland, you will need a qualified electrician to hard wire the machine to your supply or to fit a plug.
- UK MAINLAND PLUG
- If the RS Pro Strip is supplied to the UK mainland, a 3-phase 5 pin (with a neutral) plug can be fitted on request.
- A matching socket, preferably with an isolator switch needs to be in place prior to the delivery.
AIR SUPPLY
- No air needed. The Pro Strip requires no air supply.
EXTRACTION DUCTING

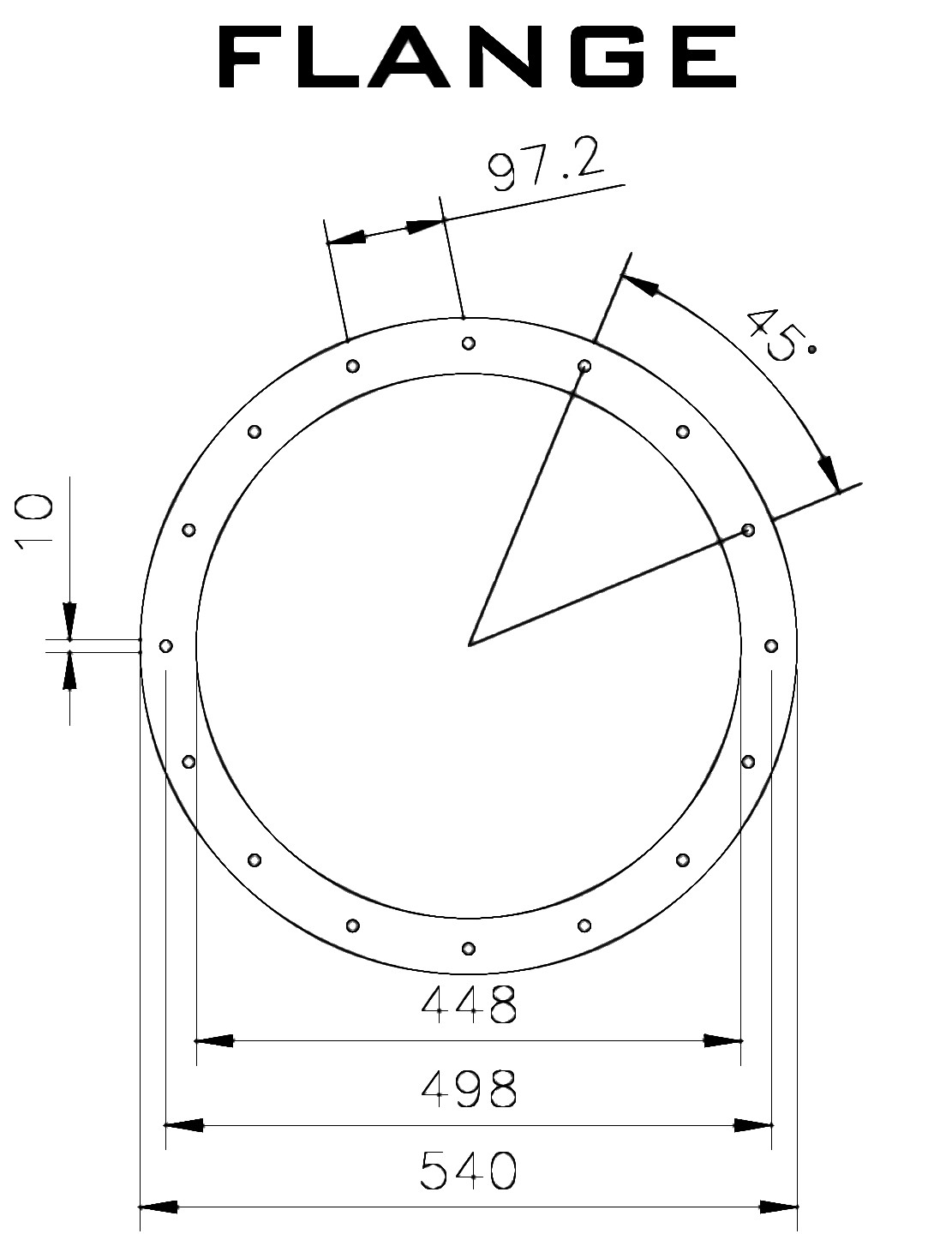

The fan unit is 450mm, however a reduced 300mm ducting can be used.
The ducting can be mounted vertically or horizontal by fitting a 90° bend.

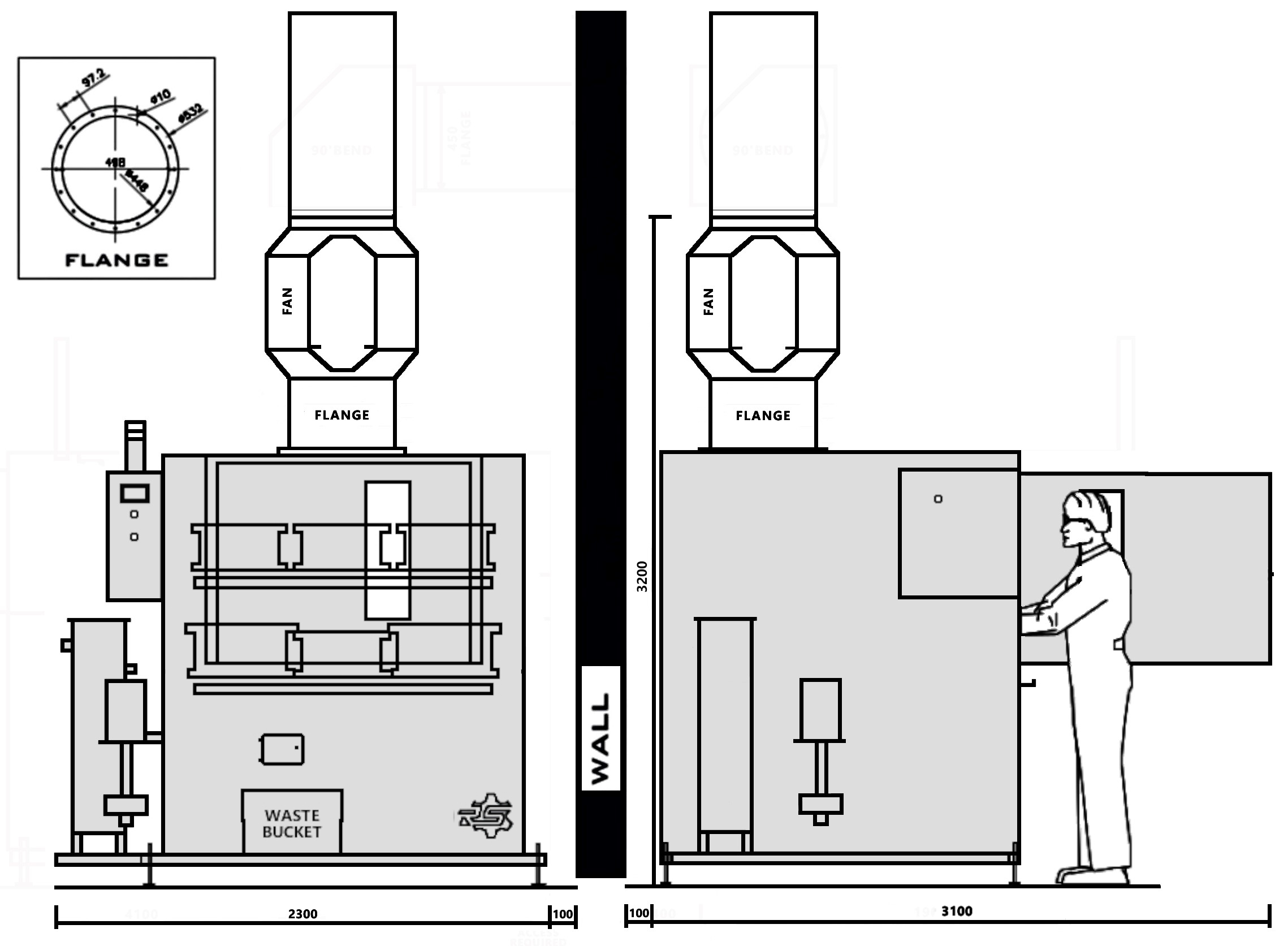

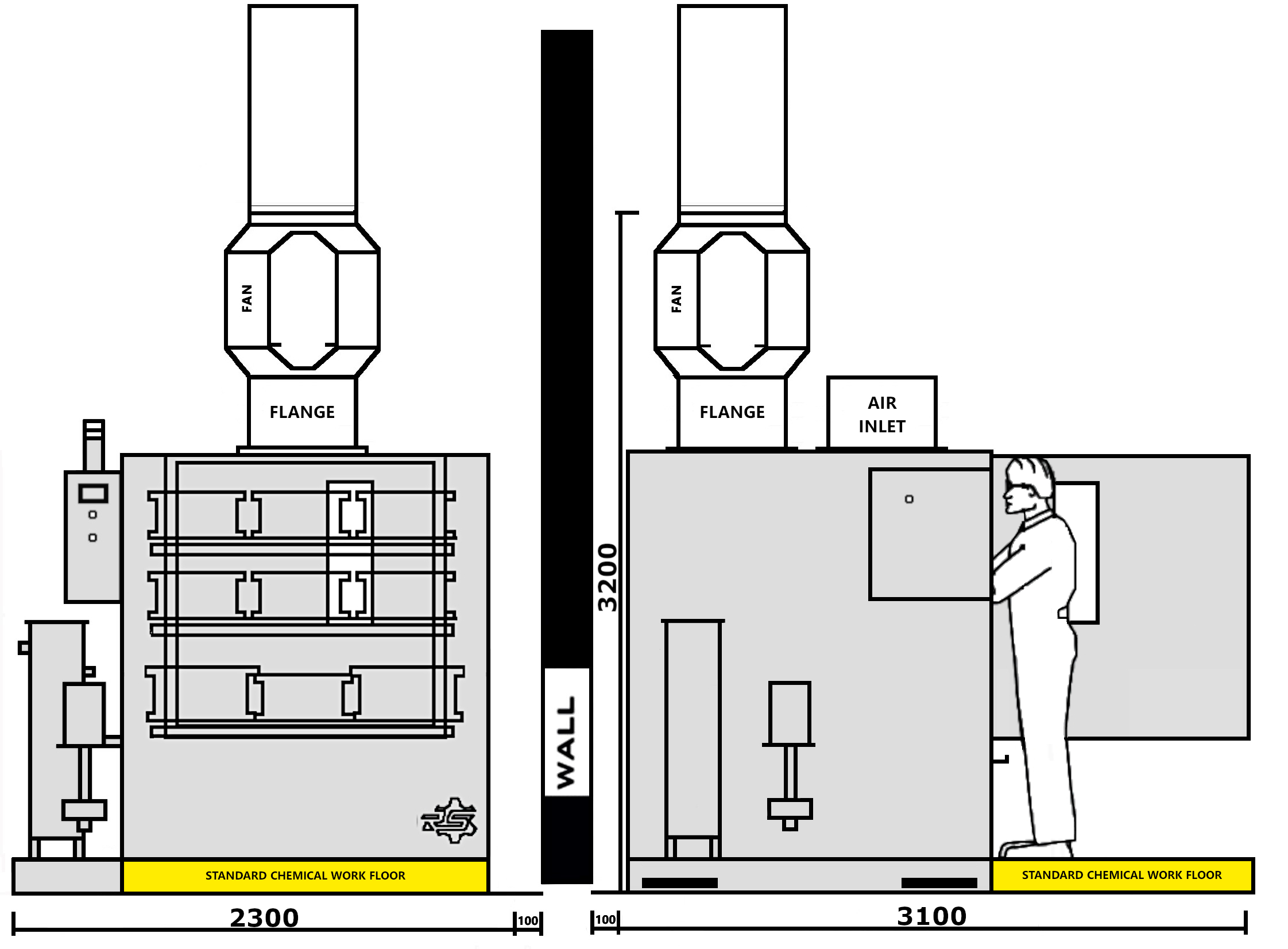

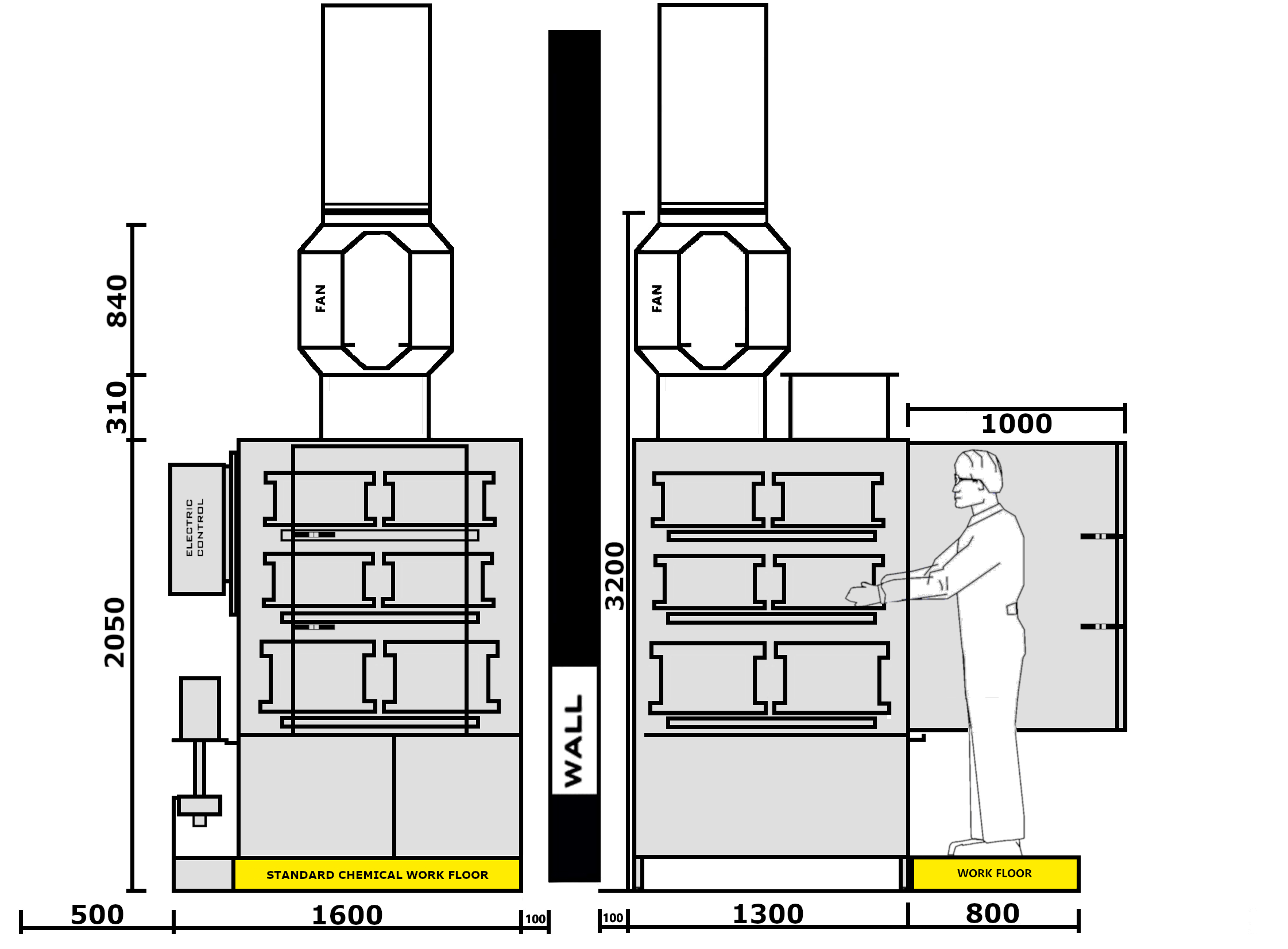

VERTICAL

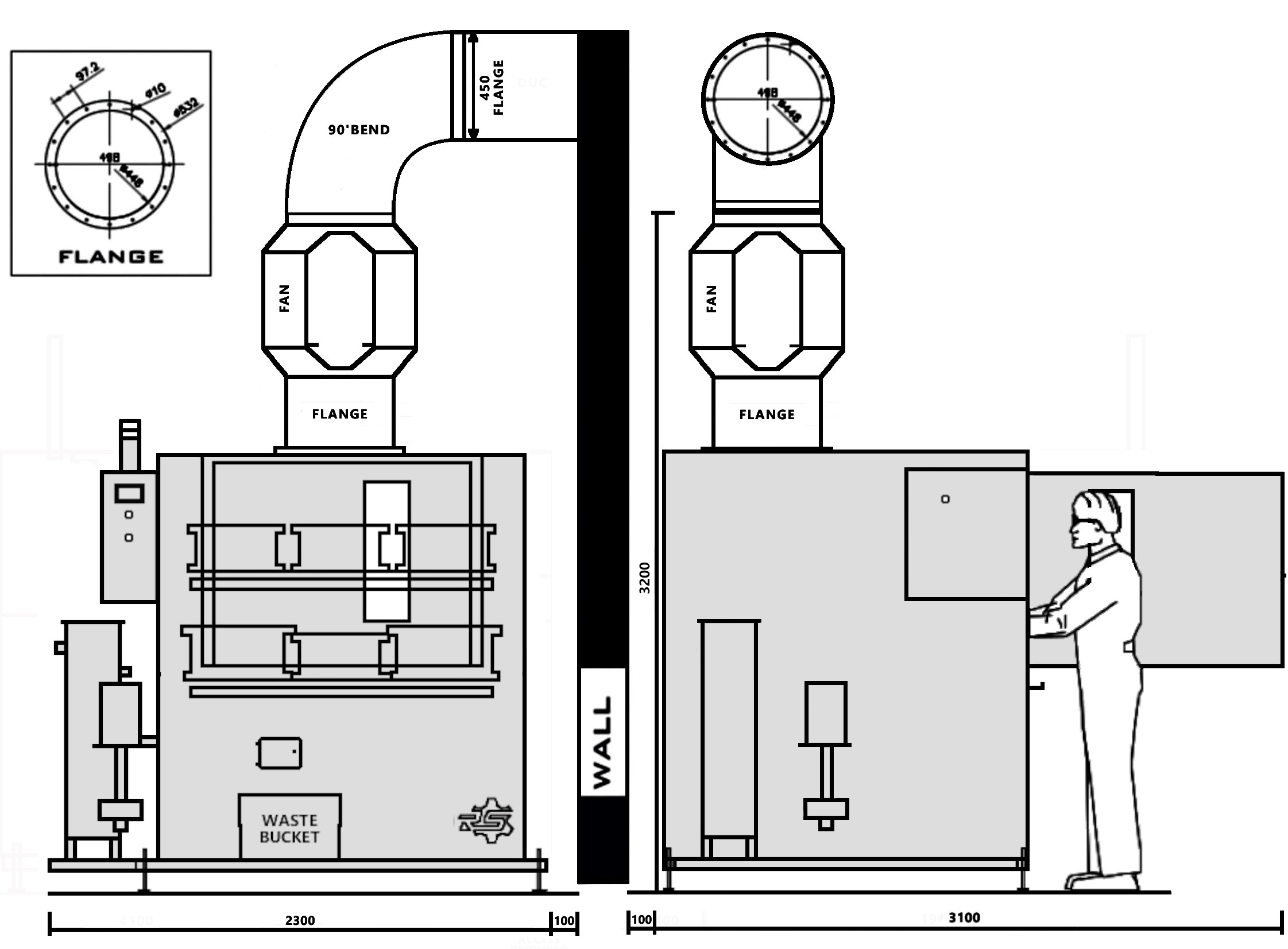

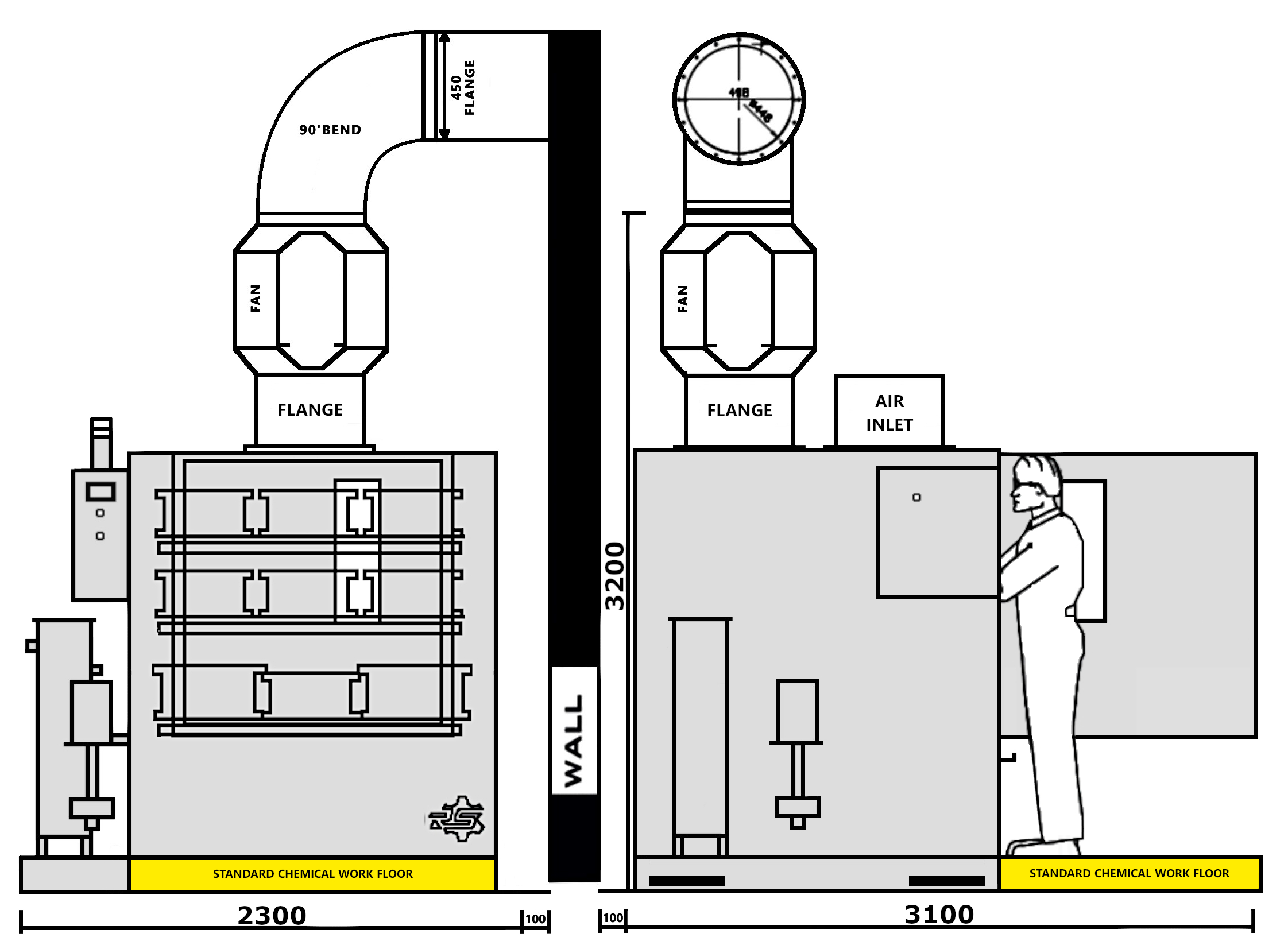

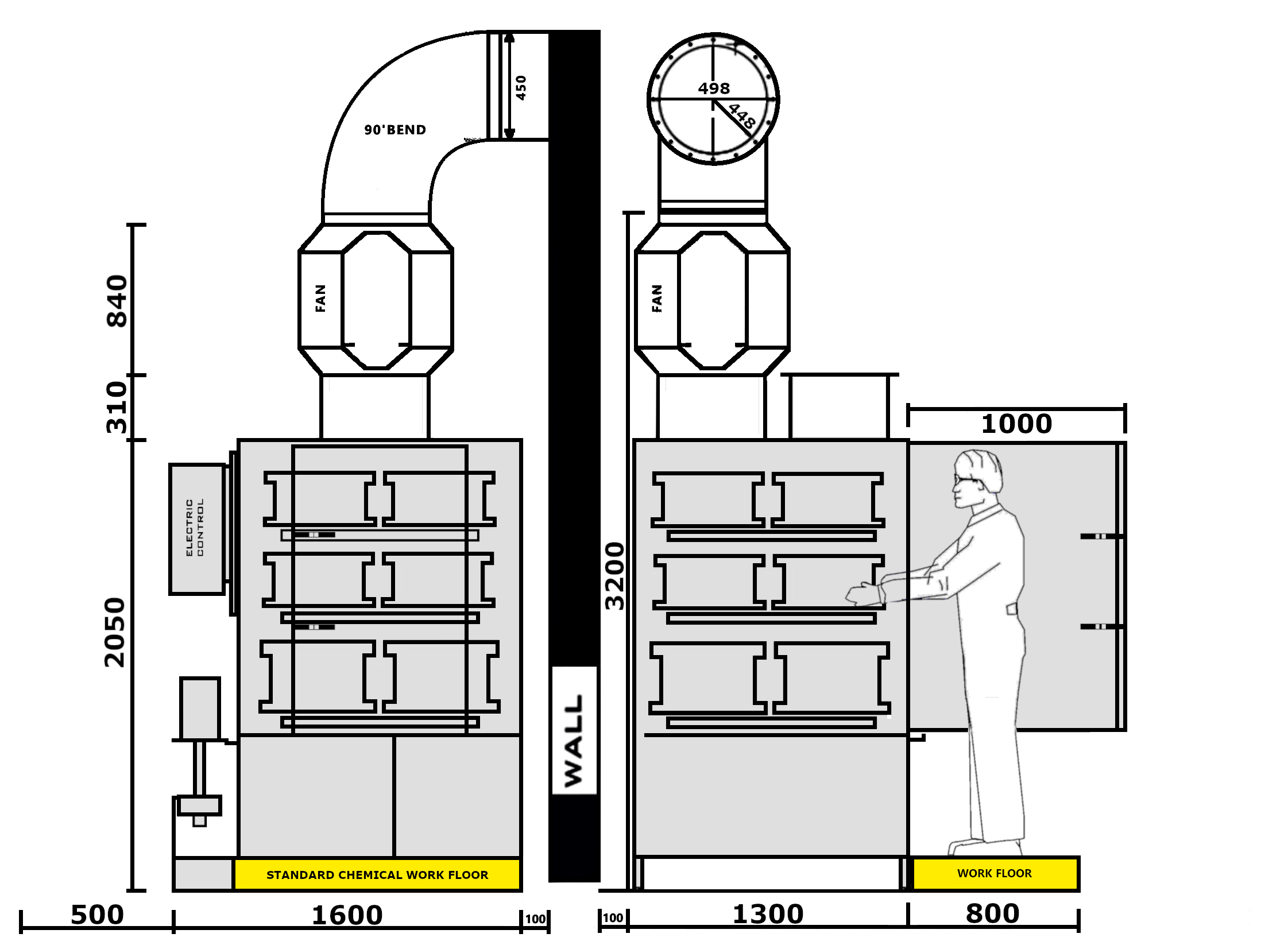

HORIZONTAL
